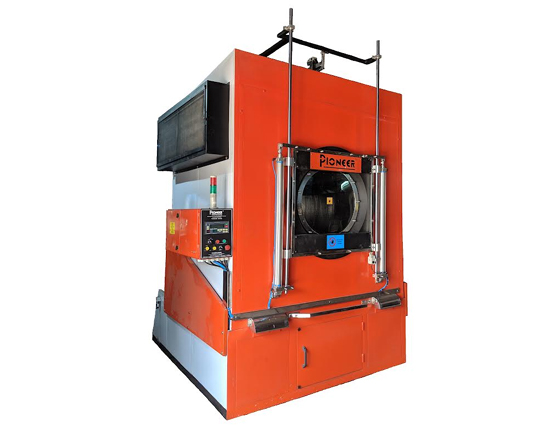

Tumble Dryers (Challenger Series)

Item Code : PTD
Tumble dryer is used to remove moisture from a load of clothing and other textiles, generally shortly after they are cleaned in a washing machine , heated air is circulated to evaporate the moisture from the load in a rotating drum.
Salient Features :
  • Pioneer's highly efficient drying machine specially designed for hosiery .dyeing industries, towel plants ,denim processing industries .hotels and hospitals.
  • Machine has automatic panel with features like auto reverse ,auto forward .automatic digital temp, indicator, auto stop.
  • Heating system as desired steam/electrio/gas/diesel.
  • Basket made of stainless steel 304 grade, outer body double wall insulated with glasswool, fitted with high power blowers for swift drying.
Pioneer also offers self tilting fully automatic tumble dryers with PLC control.


Model PTD -15 PTD - 25 PTD - 50 PTD -100 PTD - 200
Capacity (Kg) 15 25 50 100 200
Drive Motor (Kw) 0.37 0.75 1.5 2.25 3.75
Blower Motor (Kw) 0.37 0.75 1.5 1.5 (2.nos.) 2.75 (2.nos.)
Door Opening (mm) 500 650 800 1000 1050
Steam Connection 0.5" BSP 0.5" BSP 0.5" BSP 1" BSP 1" BSP
Steam Consumption 20 kg/hr 40 kg/hr 80 kg/hr 150 kg/hr 200 kg/hr
Electric (Kw) 8 12 18 N.A. N.A.
Thermic Fluid 0.5" - 0.5" BSP 0.5" - 0.5" BSP 1.0" - 1.0" BSP 1.5" - 1.5" BSP 1.5" - 1.5" BSP
Diesel Consumption (ltr/hr) N.A. 1.5 -2 2.5 - 3.5 5.5 - 6.5 8 -11
