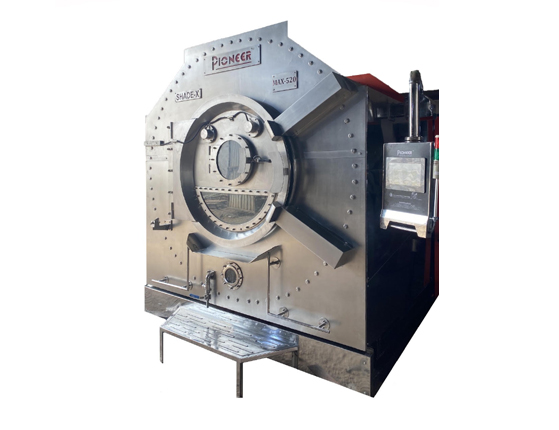

Front Load Washing Machines (Maximus Series)

Item Code : FL
Front load washing machines are technically efficient for all kinds of laundry washing and dyeing process.
Salient Features :
  • Equipped with Pioneer's *DRIZZLE* water circulation system that ensures reduction of liquor ratio (upto 1:3) without use of any additional electric pump.
  • First time in India, Beltless Drive System for improved efficiency and longer service life.
  • Very low consumption of water, chemicals and energy.
  • Specially designed for towel wash, processing 100 pieces /hour.
  • The outer drum and inner basket fabricated out of high grade stainless steel 304/316 L.
  • Fitted with variable frequency drive, fully automatic water and steam inlet / outlet as standard.
  • Equipped with tilting feature for easy unloading of garments, automatic flow control, jet spray system and microprocessor controller as add-ons.

Model Max-120 Max-200 Max-320 Max-400 Max-520
Capacity (Kg) 120 200 380 400 520
Basket Size (mm) 1350x980 1570x1220 1830x1220 1830x1524 2032x1524
Cylinder Volume (Ltr) 1400 1920 3230 4001 5700
Drive Motor (Kw) 5.5 7.5 15 15 25
Water Connection 2" BSP x2 2" BSP x2 2" BSP x2 2" BSP x2 2" BSP x2
Consumption Drain (Inch) 480 Ltrs./Fill 5 900 Ltrs./Fill 6 900 Ltrs./Fill 6 900 Ltrs./Fill 6 900 Ltrs./Fill 4" x 2"
Steam Connection 0.75" BSP 1" BSP x2 1" BSP x2 1" BSP x2 2" BSP x2
Electric (Kw) 36 N.A. N.A. N.A. N.A.

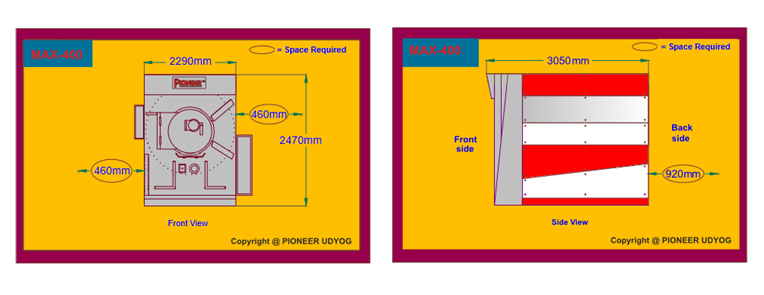

Width (mm) 1630 2100 2300 2300 3400
Depth (mm) 2200 2800 3050 3200 3850
Height (mm) 2150 2100 2500 2500 2850
Weight (kg) 1600 3675 5100 5100 5800
