Hydro Extractor Manufacturers in India | Hydro Extractor Machine In Textile | Hydro Extractor Machine In Garment

Item Code : PHE

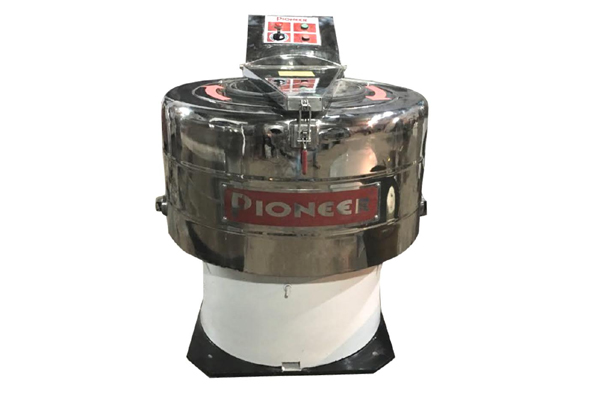

Hydro Extractor is also known as centrifugal machine , The wet material is placed in the extractor, which has a wall of perforated metal, stainless steel , the internal drum rotates at high speed thus throwing out the water contained in it.

Salient Features :

The inner rotating perforated basket is dynamically balanced,
Outter drum and inner basket is made of stainless steel grade 304.
The body structure is made of high grade cast iron provided with heavy duty springs

Pioneer's Hydro Extractor is self balancing type.

Model	PHE-15	PHE-25	PHE-50
Capacity (Kg)	15	25	50
Basket Size (MM)	550x300	700x300	1000x300
Max Extraction (rpm)	1000	1000	750
Motor (kw)	2.20	3.50	7.50
Drain (inch)	2.50" BSP	3.0" BSP	4.0" BSP
Width (mm)	1140	1200	1500
Depth (mm)	1210	1375	2000
Height (mm)	1265	1250	1300
Weight (kg)	350	425	900
