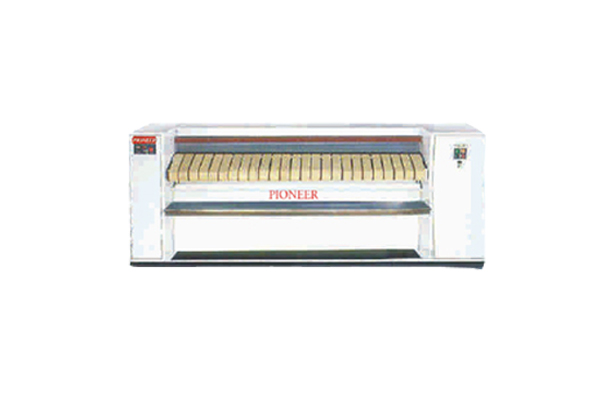

FLAT WORK IRONER

Flat work rotary ironers are used to carry out laundry jobs in hotels , hospitals ,hostels and textile industries for large quantities.
Salient Features :
  • Rotational speed controlled by variable frequency drive.
  • Maximum ouput then other ironers.
  • Heating system as desired steam/electric/thermic fluid.
  • Energy saver.
  • Marvellous article finish.
Pioneer also offers self tilting fully automatic tuamble dryers with plc contol.

Model PFWI - 3000 PFWI - 2500
Ironing Width (mm) 3000 2500
Roller Diameter (mm) 800 500
Ironing Speed (m/min) 3-17 3-7
Total Power (kw) 4 3
Electric Consumption (kw/h) 2.6 2.1
Steam Consumption 300 80

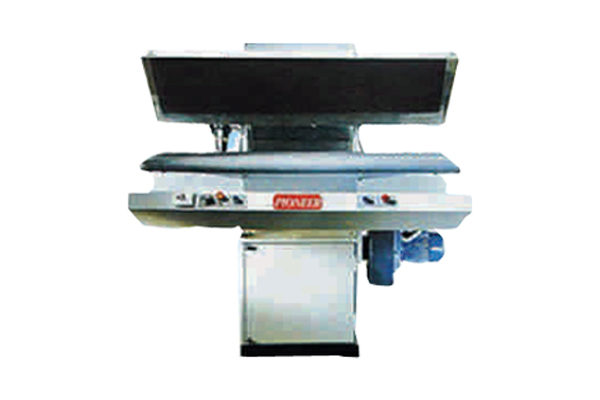

FLAT BED PRESS

Flat bed press is generally used for ironing wollen and cotton garments.
Salient Features :
  • Flat bed steam injection fast drying.
  • Automatic and manual as desired.
  • Powerful vacuum.
  • Quick steam distribution.
  • Fitted with imported silicon padding.
  • Fast operation ,dry bed at all times.


Model PFB-150
Bed (mm) 1500 x 75
Blower (hp) 0.5
Steam Consumption 40 kg/ghr
Steam Connection 0.5"
Electric Consumption (kw/h) 2.6
Steam Consumption (kg/hr) 300

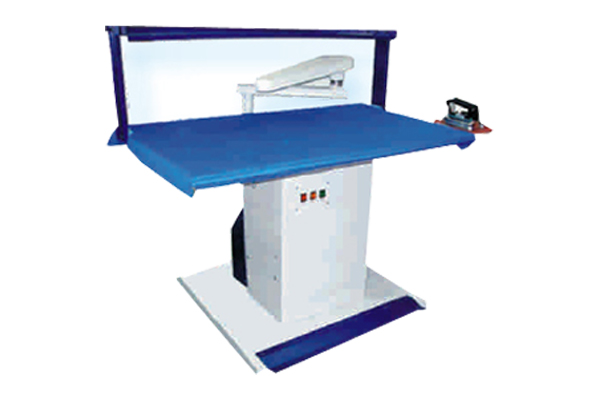

VACUUM FINISHING TABLE

Vacuum finishing table is required for ironing shirts ,t-shirts ,trousers and other garments with adjustable storage rack.
Salient Features :
  • Sturdy and stable base.
  • Powerfull suction and imported silicon padding.
  • Adjustable ironing pressure.
  • Quick steam injection.
  • Thermostatically contolled stainless steel table heater.
  • Extended exhaust duct.


Model PVT - 40 PVT -60
Table Size(mm) 1300 x 800 1500 x 1250
Motor (kw) 0.37 0.37 (2no.s)

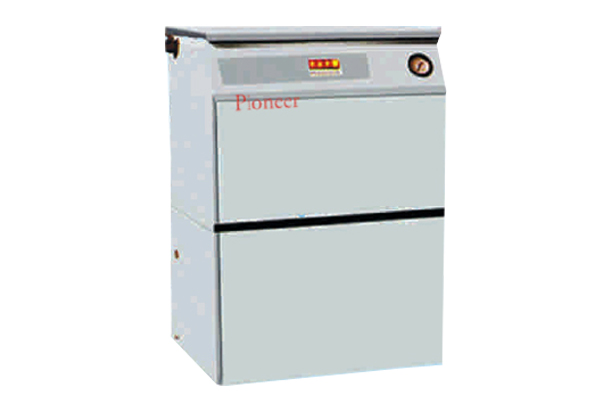

FULLY AUTOMATIC ELECTRIC STEAM GENERATOR

Salient Features :
  • More Attractive, Low weight dry steam
  • Stainless steel Vessel 304 grade with PUF insulated
  • Electrically controlled safely Steam
  • Low water indication by buzzer, visual gauge glass
  • Day to Day De scaling drainage facility
  • Imported Genuine Spare and Presses
  • High temp & High pressure to Free Wrinkles
  • Rust proof and power coated outer Frame
  • Fully Automatic
