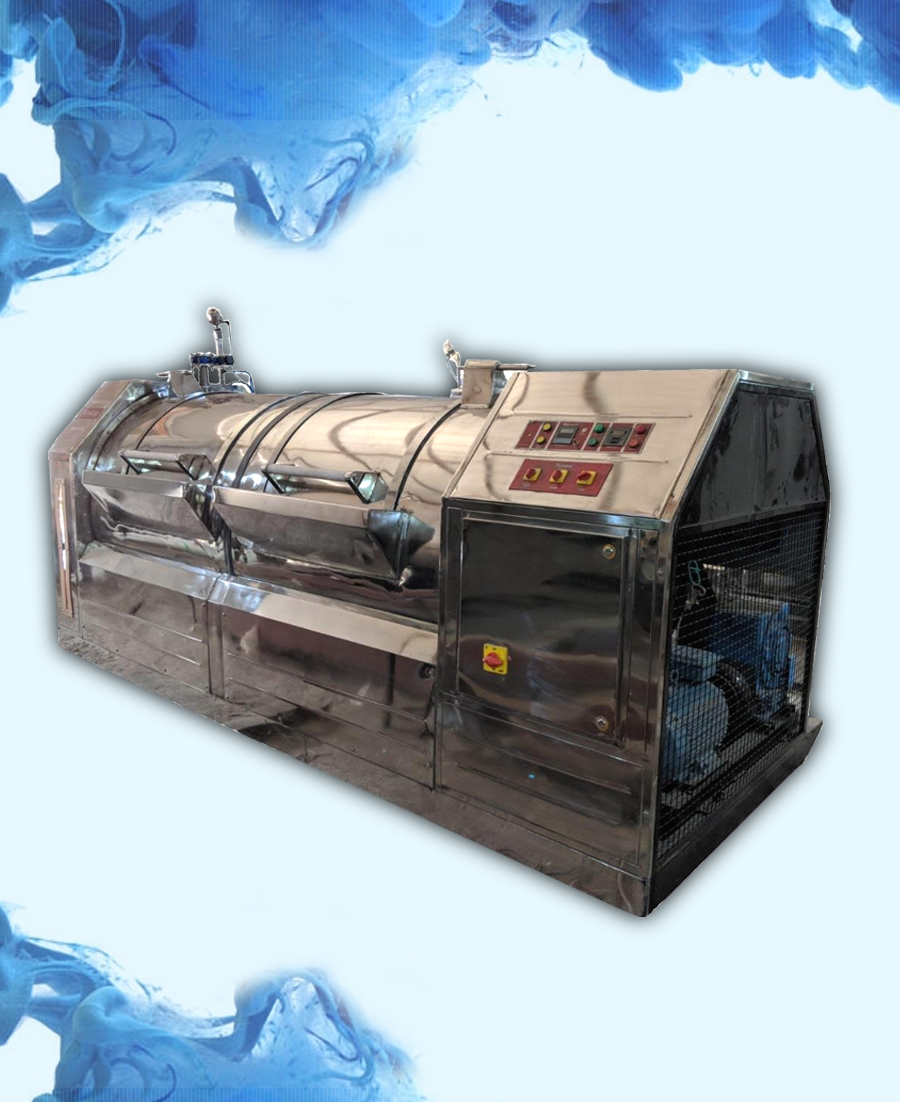

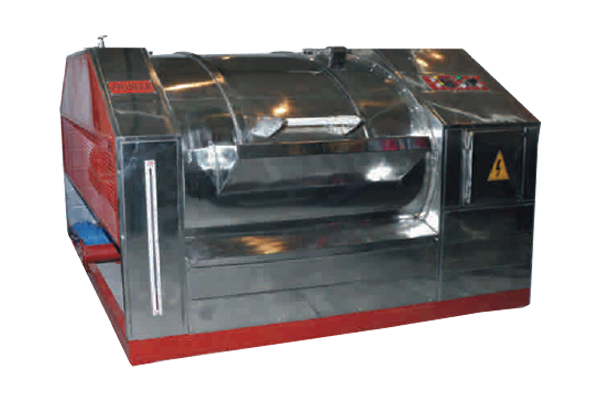

SIDE LOAD WASHING MACHINE

Side load washing machine is suitable for washing of garments , denim/enzyme wash, garment dyeing , dyeing of knitted garments , washing of cotton fabrics.
Salient Features :
  • Machine has automatic panel with features like auto reverse ,auto forward ,automatic digital temp. indicator , auto timed.
  • Auto digital temperature control and auto stop features with gear box drive.
  • The body of machine is fabricated out of stainless steel grade 304/316.
  • The inner drum basket is made of perforated stainless steel of 304 grade , having a single smooth joint.
Pioneer’s side load washing machine is designed for minimum liquor ratio ,hence saving water and chemical usage , and provides with better quality fabric.


Model SL-15 SL-30 SL-65 SL-85 SL-100 SL-150 SL-175 SL-200 SL-300 SL-400
Capacity (Kg) 15 30 65 85 100 150 175 200 300 400
Basket Volume (Ltr) 200 420 900 1120 1435 2150 2625 2850 4275 6465
Loading Doors Opening 520x300 520x400 665x450 665x450 665x470 665x470 665x470 665x470 665x470 665x470
No.Of Doors 1 1 1 1 1 1 1 2 3 3
Drive Motors 0.37 0.75 2.25 3.75 5.60 7.50 7.5 15 15 18.75
Water Connection 1" BSP 1.5" BSP 2" BSP 2" BSP 2" BSP 2" BSP 2" BSP 2" BSP x2 2" BSP x3 2" BSP x3
Water Consumptions / Dip (ltrs.) 85 210 450 540 700 1060 1349 1499 2200 3250
Drain (Inch) 3" 3" 4" 4" 4" 5" 6" 6" 8.5" 8.8"
Steam Connection 15mm 15mm 15mm 15mm 15mm 20mm x 2 20mm x 2 20mm x 2 20mm x 3 20mm x 3
Steam Consumption 8-10 kg/hr 15-20 kg/hr 30-40 kg/hr 50-60 kg/hr 60-70 kg/hr 100-120 kg/hr 130-150 kg/hr 160-180 kg/hr 200-225 kg/hr 300-350 kg/hr
Diesel Fired (Ltrs.) 1-1.5 1.5-2 3-4 4-5 5-6.2 6.5-7.25 7.5-8.75 7-9 N.A. N.A.
